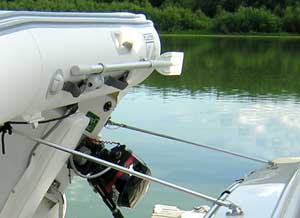

St. Croix's TipUp Davit System is designed so nothing touches the dinghy tube. The system installs without glue. Fabricated from polished 304 & 316 stainless steel, the TipUp davits are custom fit for swim platforms up to 24" (61cm) high off the water. Sysem is rated for hard bottom inflatables up to 450 lbs.(204 kg).
Using a uniquely designed "rolling lock", snap latches and optional mounting shoes with locking pins, the TipUp Davit system is easily removable without tools. Many other optional accessories give you the perfect installation. Contact us for details for your particular craft.
If you are considering a davit system, then TipUp Davits are the newest solution to storing your tender while underway. They are ideal for both larger swim platforms and traditional size platforms.
Using a uniquely designed "rolling lock", snap latches and optional mounting shoes with locking pins, the TipUp Davit system is easily removable without tools. Many other optional accessories give you the perfect installation. Contact us for details for your particular craft.
If you are considering a davit system, then TipUp Davits are the newest solution to storing your tender while underway. They are ideal for both larger swim platforms and traditional size platforms.
The Standard TipUp System Includes these Components:
Transom
Mounting Socket
(1 each)
Mounting Socket
(1 each)

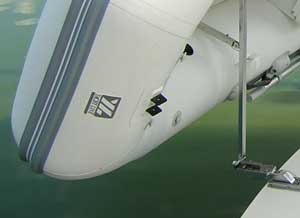

Rolling Lock Bow Socket
with Backing Plates
(2 each)
with Backing Plates
(2 each)

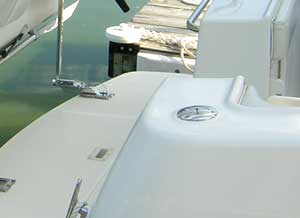

Platform Snap Lock
(2 each)
(2 each)
|
Swim Platform Height Determines Which St. Croix TipUp System You Need
|
|||
|
Model
Number |
Platform Height |
Bow Arm |
Transom Arm |
| 911 | 6" - 12" (15.2 cm. - 30.5 cm.) |
 |
 |
| 912 | 12" - 16" (30.5 cm. - 40.6 cm.) |
 |
 |
| 913 | 16" - 24" (40.6 cm. - 61 cm.) |
 |
 |
| Optional Mounting Hardware for Model 911, 912 & 913 TipUp Davits |
||
| Part Number |
Name | Description |
| 914 | Shoe Kit | Slide in shoes give you the option of removing the snap latches, risers or extensions easily and without tools. Sold in pairs. |
| 932 | 5' Lifting Strap (1.5 m.) |
2" nylon web strap used to help lift the dingy into the stowed position. Can be used in conjunction with a pulley system for easier lifting. Prevents abrasion of the tube. |
| 936 | 4" Riser (10.2 cm.) |
Raises the system and snap latch 4" higher on the swim platform. Sold in pairs. |
| 926 - 931 | Stand-Off Bar Kits (various lengths) |
Kits come in 6 different lengths from 12" to 52". Used to secure the dinghy when underway. Sold individually. Kit includes stand-off bar, fast pins and bracket. |
| The design of some boats may require the use of additional mounting hardware. Optional mounting hardware (except #932) is fabricated from stainless steel. |
||
