Model 840
for Long PWC
& Hard Bottom
Inflatables
Patent #10/306,189

This is the newest addition to our long line of dinghy storage systems. If your platform has at least 42” of depth, this model is probably best for your vessel Designed for hard bottom inflatables up to 1000 lbs (454 kg.), each of it’s three independent roller assemblies can be positioned exactly where they will best accommodate your dinghy. The outriggers on each are equally adjustable.

Once set up, the system is very simple. Just winch the dinghy up and over the tilting lead roller – and then onto the cradle rollers. Then attach your tiedown straps and slide the lead roller and winch out of their shoes.

When not needed you clear the platform by popping out the ball detent lock pins on each roller assembly. This takes less than 30 seconds and requires no tools whatsoever.

Mounting fasteners for shoes and deck inserts are not included.

Back to
Roll-On Systems
Overview Page

The components of the system include:

• Mounting shoe (1)
• Tilting lead roller section that slides into the shoe (1)
• Flush mounted deck inserts (3)
• Main assembly that fits into the deck inserts (3)
• 1" (25 mm) SS ratchet straps (3)
• Pad eyes for securing the tender (3)
• Winch Stand with Winch & Strap (1) (show at left)

Optional components include:

• 12” Extension for Lead Roller (Part 854)

Winch slides out
of mounting shoe for easy removal.

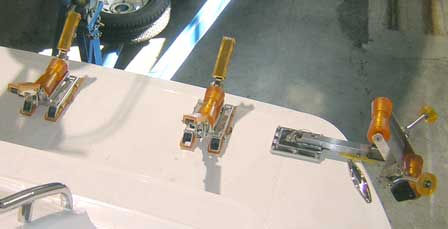

Main
roller
assembly.

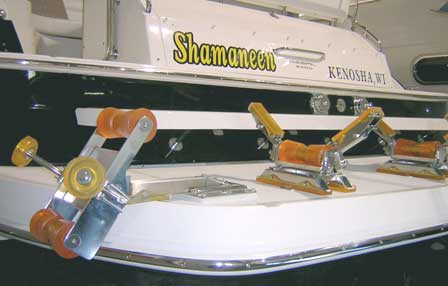

Tilting lead roller with optional Part 854 lead roller extension.

Lead roller and optional extension slide out of mounting shoe for easy removal.
