Model 870
Ideal for
Hard Bottom
Inflatables
Patent #10/306,189

An elegant solution to swim platform storage that is easy to install and easier to remove! The Long Bunk Roll-On System is engineered with four low-profile receivers that install permanently to the swim platform. Two SS bunks with roller assemblies slide into the receivers. A lead roller slides into a platform mounted shoe. A manual winch stand slides into a platform mounting shoe. Rated for 600 lbs. (272 kg.). The system is engineered using 316 stainless steel components and marine grade material on the lead roller and bunks. The Long Bunk system is designed to be used on any swim platform that is at least 46" (117 cm) deep. Removes in seconds without tools! Slide the bunks out of the receivers and slide the lead roller and winch stand out of the shoes. It's that simple!

The components of the system include:

• 48" (122 cm) Long Bunks (2)
• Lead Roller (1)
• Winch Stand with Winch & Strap (1)
• Permanent Platform Mounting Shoes (2)
• Permanent Platform Mounting Post Receivers (4)
• 1" (25 mm) SS ratchet straps (3)
• Pad eyes for securing the tender (3)

Optional components include:

• 20" (50.8 cm) Cantilevered Extension Arms (Part 874) See photo below
• 64" Long Bunks (Part 864)

Back to
Roll-On Systems
Overview Page

Winch slides out
of mounting shoe for easy removal.

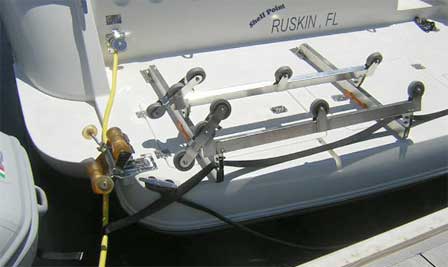

Model 870
Roll-On
System
with optional
Part 874
Extension Arms

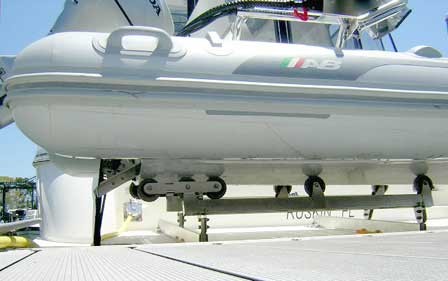

End rollers
on the bunks tilt when tender is retrieved or launched.

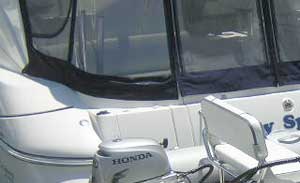

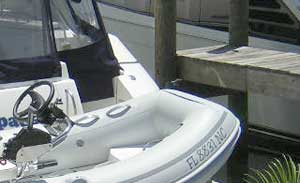

Tender
in place
on Roll-On
system.

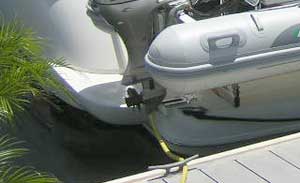

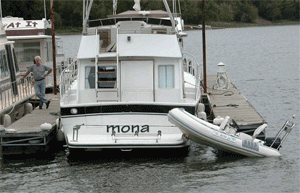

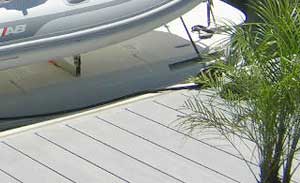

Model 870 Roll-On System in use.
